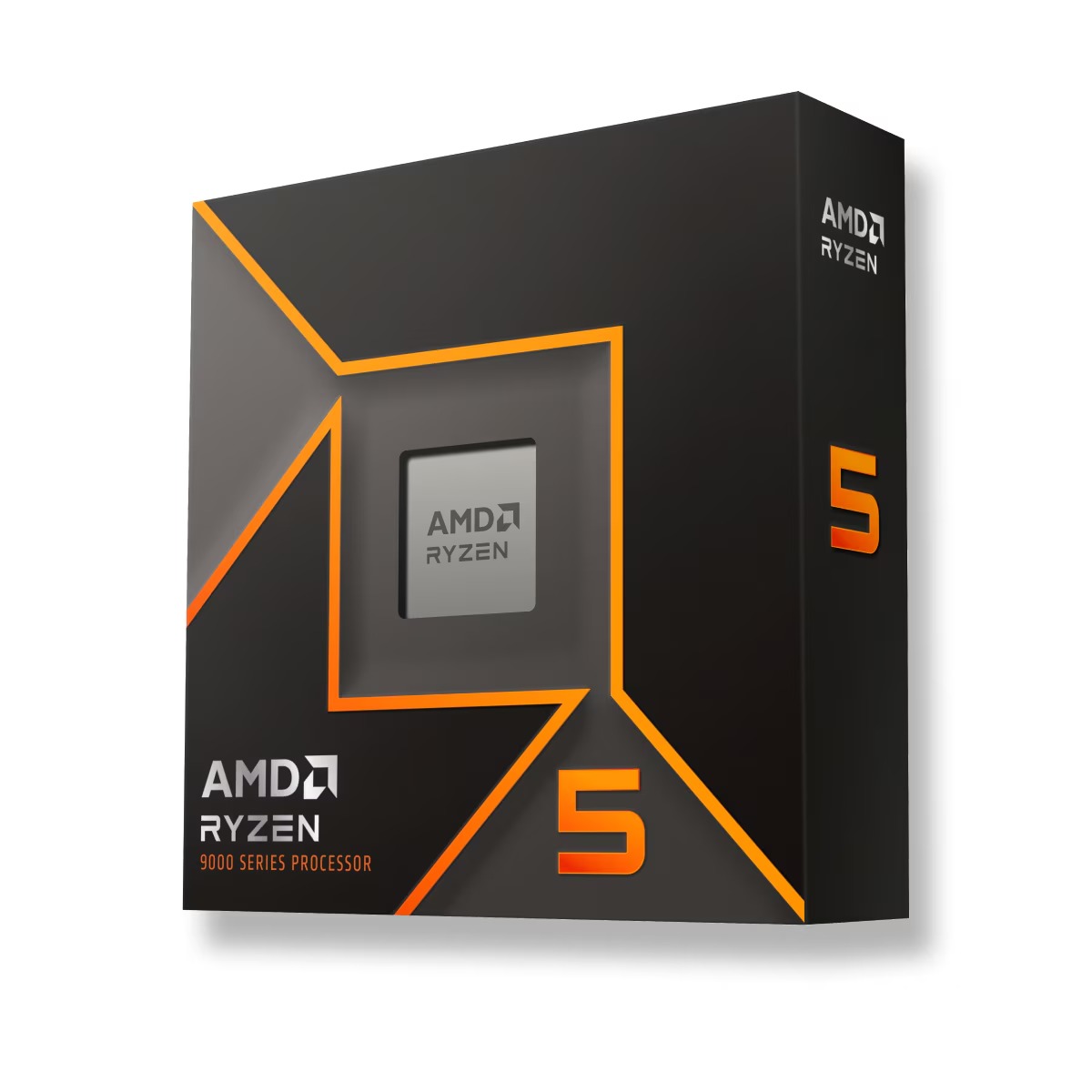

AMD Ryzen 5 9600X 6C / 12T AM5

Name
AMD Ryzen™ 5 9600X
Family
Ryzen
Series
Ryzen 9000 Series
Form Factor
Desktops, Boxed Processor
Market Segment
Enthusiast Desktop
AMD PRO Technologies
No
Regional Availability
Global
Former Codename
Granite Ridge AM5
Processor Architecture
Zen 5
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 5.4 GHz
Base Clock
3.9 GHz
L1 Cache
480 KB
L2 Cache
6 MB
L3 Cache
32 MB
Default TDP
65W
Processor Technology for CPU Cores
TSMC 4nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
Package Die Count
2
Unlocked for Overclocking
Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)
Not Included
Recommended Cooler
Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)
95°C
Launch Date
08/08/2024
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Native USB 3.2 Gen 2 (10Gbps)
4
Native USB 2.0 (480Mbps)
1
PCI Express® Version
PCIe® 5.0
Native PCIe® Lanes (Total/Usable)
28 , 24
Additional Usable PCIe Lanes from Motherboard
X870E 8x Gen4
X870 4x Gen4
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support
Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type
DDR5
Memory Channels
2
Max. Memory
192 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support
Yes (Requires mobo support)

Graphics Capabilities
Graphics Model
AMD Radeon™ Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
USB Type-C® DisplayPort™ Alternate Mode
Yes
